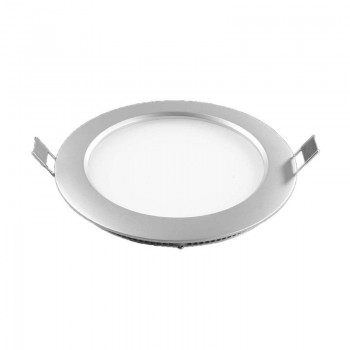

arl / pn / e3
6w / 12w / 18w
| Performance | ||||
| arl / pn / e3 | CCT | CRI | Lumen P/W | |
| Single Color | 2750k | >80 | 110/w | |
| 2950k | >80 | 120/w | ||
| 4000k | >80 | 130/w | ||
| 6000k | >80 | 140/w | ||
| Fixture Color | White / Silver | |||
| LED Type | SMD | |||
| LED Make | Citizen / Edison | |||
| Available Beam Angles | ||||
| Input Voltage | 220VAC - 240VAC | |||
| Dimming Options | ||||
| Construction Details | Die cast aluminium body with best quality reflector and optimum heat sink for heat dissipation. | |||
| Finish | Standard White (Other options on demand) | |||
| Dimensions | Ø 150mm, H 200mm | |||
| Installation Option | Recessed | |||
| Ambient Operating Temperatures | -20oc To +80oc | |||
| Protection Rating | IP 20 | |||
| Driver Option | Built in / Remote | |||
Can be applied in commercial lighting and residential lighting applications, such as offices, shopping mall, hotel, restaurant, hospital, home lighting etc.
